Specifications

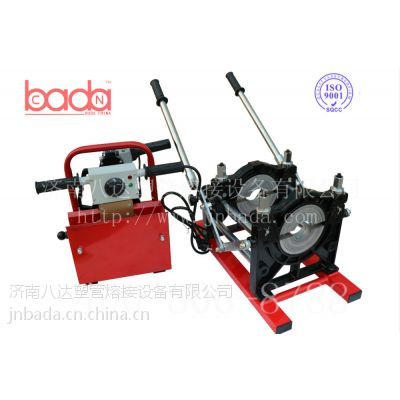

high quality manual 200 plastic butt welder1.Apply to pe pipe
2.welder
3.CE
4.Light weight and woking efficiently
Verified Supplier
Jinan Bada Plastic Pipe Welding Equipment Co., Ltd.
| Factory
Experience:2009-11-09
Buyer Protection
- Guaranteed Secure Payments on Every Order
- Refund if your item is not delivered or as described
- Buyer Protection after order confirmation
Latest Browsing
Product Details
- Place of Origin: Shandong, China (Mainland)
- Brand Name: CNBADA
- Model Number: SHBDS 200
- :
- :
- :
- :
- :
- :
- :
- :
uick Details
Condition: New
Place of Origin: Shandong, China (Mainland)
Brand Name: BADA
Model Number: SHBDS 200 (2 fixturers)
Input Voltage: 220V
Current: 50Hz
Power: 2.55KW
Dimensions: 63mm~200mm
Usage: Welding pipe
Certification: CE
After-sales Service Provided: Engineers available to service machinery overseas
Color: red or blue or other
Warranty: one year
Available welding diameter:63mm,75mm,90mm,110mm,125mm,140mm,160mm,180mm,200mm
Packaging & Delivery
| Packaging Details: | standard wooden boxes |
|---|---|
| Delivery Detail: | 10days |
1.Apply to pe pipe
2.welder
3.CE
4.Light weight and woking efficiently
| Model | SHBDS-160 | SHBDS-200 |
| Welding range(mm) | 50,63,75,90, 110,125,140,160 | 63,75,90,110,125, 140,160,180,200 |
| Heating plate temperature | 270°C | 270°C |
| Heating plate surface temperature(170-250°C) | <±5°C | <±5°C |
| Working Voltage | 220V,50Hz | 220V,50Hz |
| Heating plate power | 1.0KW | 1.7KW |
| Cutter power | 0.85KW | 0.85KW |
| Total Power | 1.85KW | 2.55KW |
Our advantage:
1. The raw material of the machine frame is aluminum ZL104, it is light but strong, is one of the best material for machine.
2. The main electrical apparatus elements are best of china, imported from abroads.
3. Removable PTFE coated heater with separate temperature control system,temperature can be controlled to a minimum range.
4. The electric facer adopts reversible double cutting edge blades, which can make the cutting effect more perfect.
Our Services
1. One year warranty, life-long maintenance.
2. In warranty time, if nonartificial reason damaged can take old change new for free. Out of warranty time, we can offer maintenance service (charge for material cost).
3. Engineers available to service machinery overseas but all the costs to the buyer to pay.
Company Information
JINAN BADA PLASTIC PIPE WEDLING EQUIPMENT CO.,LTD is a leader manufacturer specialized in butt welding machine in china.
It has built up an excellent brand image and gotten above 80% domestic market and export to more than 40 countries since entered to China in 2009 .
We own a complete range of international standard butt fusion equipment including field welding machine, workshop fitting machine, pipe cutting saw, all the optional parts and tools required under the ISO9001 quality system as well as CE certification.
- Place of Origin: Shandong, China (Mainland)
- Brand Name: CNBADA
- Model Number: SHBDS 200
- :
- :
- :
- :
- :
- :
- :
- :
200 pe hdpe pipe butt fusion welding machine ---Further parameters:
| Model | SHBDS-160 | SHBDS-200 |
| Welding range(mm) | 50,63,75,90, 110,125,140,160 | 63,75,90,110,125, 140,160,180,200 |
| Heating plate temperature | 270°C | 270°C |
| Heating plate surface temperature(170-250°C) | <±5°C | <±5°C |
| Working Voltage | 220V,50Hz | 220V,50Hz |
| Heating plate power | 1.0KW | 1.7KW |
| Cutter power | 0.85KW | 0.85KW |
| Total Power | 1.85KW | 2.55KW |
