Product Description

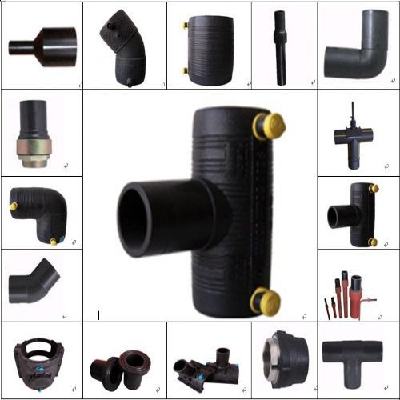

HDPE electrofusion pipe fittings (joint)
1.for water and gas (special for fuel gas)
2.material:PE100 PE80(improted polyethylene material)
3.size 20mm--800mm
4.Connectivity: welding
5.standard:ISO9001 GB15558.2-2005 GB13663.2-2011 KS certificate(Korean standard association) PE Fittings
6>Pressure Rating: 0.8MPa-1.6MPa
7>Color:black or other colors on request
Advantage:
when exposed to moisture,it guarantees the stabilityof the welding performance,with large depth of submer sion and large face of weld , there is cooling zone at the two ends and middle area which can prevent the flowing melt materials adequately .
this kind of design makes the welding operation available even without fixing device.the design of the safety device of inspection hole obtains the national protection of intellectual property.it makes the welding operation to be more safety,and makes the inspection to be more visual and convenient.
Our Services
1. Free sample.
2.custom made as your request.
3. quality guarantee
4. OEM is ok.
Company Information
Jinan Bada Plastic Pipe Welding Equipment Co.,Ltd is located in Jinan city, which is the capital of Shandong
province. It is a professional manufacturer for hot melt machine producing. The main products are Bada series
butt fusion welding machine, automatic butt fusion welding machine, pipe fitting welding machine, saddle-shaped taper pipe butt fusion welding machine,plastic pipe multi-angle cutting saw, PPR socket welder and other auxiliary building machines.
We have the most advanced technology and producing experience. The products have passed the ISO9001
quality system certification and CE certification. The products are sold at home and abroad.
Materials performance:
Basic performance of raw materials for pipe fittings | ||||
Paramenter | Units | Requirement | Test Value | |
Density | (kg/m3) | ≥930 | 23°C | |
Melt flow rate | g/10min | 0.2-1.4 | 190°C,5kg | |
Thermal slaility(OIT) | min | >20 | 200°C | |
Volatilematter content | mg/kg | ≤ 350 | ||
Moisture content | mg/kg | ≤ 300 | ASTM D 4019:1994a | |
Carbon black content | % | 2.0-2.5 | ||
Carbon black dispersion | grade | ≤ 3 | ||
Gas proof components | h | ≥20 | 80°C,2MPa Hoop stress | |
En>5mm Resitance to slow crack growth | h | 165 | 80°C,0.8MPa Test Presssure 80°C,0.92MPa Test Presssure |
Electro fusion Coupling size
Size | SDR series | Inside Diametre(Dn) | EF Width L1 | Total length L |
Dn50 | 11 | 50 | 24 | 98 |
Dn63 | 11 | 63 | 26 | 110 |
Dn75 | 11 | 75 | 32 | 120 |
Dn90 | 11 | 90 | 36 | 130 |
Dn110 | 11 | 110 | 40 | 150 |
Dn160 | 11 | 160 | 46 | 180 |
Dn200 | 11 | 200 | 50 | 210 |
Dn250 | 11 | 250 | 65 | 230 |
Dn315 | 11 | 315 | 80 | 265 |
Dn355 | 11 | 355 | 283 | |
Dn355 | 17.6 | 355 | 283 | |
Dn400 | 17.6 | 400 | 295 | |
Dn450 | 17.6 | 450 | 326 | |
Dn500 | 17.6 | 500 | 378 | |
Dn560 | 17.6 | 560 | 388 | |
Dn630 | 17.6 | 630 | 402 |
