Product Details
- Place of Origin: Shandong, China (Mainland)
- Brand Name: CNBADA

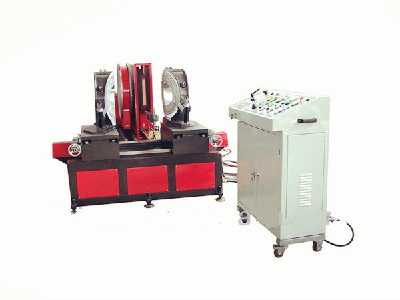

- Model Number: SHBG450
- Weight: 2850.000 kg
- :
- :
- :
- :
- :
- :
- :
Condition: New
Place of Origin: Shandong, China (Mainland)
Brand Name: BADA
Model Number: SHBG450
Input Voltage: 380V
Current: 50Hz
Power: 17.7KW
Dimensions: 200-450mm
Usage: Welding pipe fittings
Certification: CE&ISO
After-sales Service Provided: Engineers available to service machinery overseas
Warranty: one year
Color: red or blue
Available welding diameter:200,225,250,280,315,355,400,450
Total Volume: 14.66 m³
Total Weight: 2850KG
Material: Aluminum
Weld Method: hydraulic butt fusion welding machine
HS Code: 85152900
Package: standard export wooden cases
Video teaching: YES
Packaging & Delivery
| Packaging Details: | The goods are packaged by seven composite material standard export wooden cases after plastic film packaging |
|---|---|
| Delivery Detail: | Shipped in 15 days after payment |
Application and Features:
1. Applicable in the workshop production of PE,PP,PVDF elbow, equal tee equal cross.lengthen injection short pipe fittings, fittings production assembly and so on.
2. Integrated structural design,welded pipe fittings of different can simply replace the corresponding clamps.
3. Heating palte with seperate temperature control system, Teflon coating.
4. Electric cutter, safety limit switch to prevent accidental start-cutter.
5. Low starting pressure, high reliability seal structure.
6. Seperate two-channel timer can record heat and cooling two time periods, timer expires alarm,convenient for users.
7. The use of digital pressure gauge, pressure control is more precise.
8. Heating plate,cutter,pallet using linear guide rail.
9. Product complies with 98/37/EC and 73/23/EEC standards.
10. Optional components: short flange welding clamp,short pipe welding special clamp.
Further Parameters:
Model | SHBG315 | SHBG450 | SHBG630 | SHBG800 |
Welded Tube Type | 0-90º Elbow,tee,cross | |||
Welding range(mm) | 110-315 | 280-450 | 355-630 | 500-800 |
Operating voltage(V/Hz) | 380V,50Hz | 380V,50Hz | 380V,50Hz | 380V,50Hz |
Heating plate Max. | 270°C | 270°C | 270°C | 270°C |
Max. Pressure | 6Mpa | 12Mpa | 16Mpa | 16Mpa |
Cross-sectional area | 1256 | 1256 | 1963 | 2117 |
Total power(KW) | 7.45KW | 17.7KW | 28KW | 47KW |
Our advantages:
1. The raw material of the machine frame is aluminum ZL104, it is light but strong, is one of the best material for machine.
2. The main electrical apparatus elements are best of china, imported from abroads.
3. Removable PTFE coated heater with separate temperature control system,temperatur can be controlled to a minimum range.
4. The electric facer adopts reversible double cutting edge blades, which can make the cutting effect more perfect.
Our Services
1. One year warranty, life-long maintenance.
2. In warranty time, if nonartificial reason damaged can take old change new for free. Out of warranty time, we can offer maintenance service (charge for material cost).
3. Engineers available to service machinery overseas but all the costs to the buyer to pay.
Company Information
JINAN BADA PLASTIC PIPE WEDLING EQUIPMENT CO.,LTD is a leader manufacturer specialized in butt welding machine in china.
It has built up an excellent brand image and gotten above 80% domestic market and export to more than 40 countries since entered to China in 2009 .
We own a complete range of international standard butt fusion equipment including field welding machine, workshop fitting machine, pipe cutting saw, all the optional parts and tools required under the ISO9001 quality system as well as CE certification.
