After-sales Service Provided:Engineers available to service machinery overseas
Color:red or blue or other
Warranty:one year
Available welding diameter:50mm,63mm,75mm,90mm,110mm,125mm,140mm,160mm
Packaging & Delivery
Packaging Details:
standard export plywood boxes or as your request

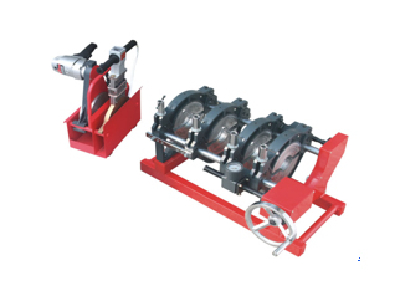

160 pe hdpe pipe butt fusion welding machine ----Application:
PE pipes welding machine;
HDPE pipes welding machine;
PP pipes welding machine;
PB pipes welding machine;
PVDF pipes welding machine;
any other plastic pipes available for welding... ...
160 pe hdpe pipe butt fusion welding machine ---Further parameters:
Model
SHBDS-160
SHBDS-200
Welding range(mm)
50,63,75,90,
110,125,140,160
63,75,90,110,125,
140,160,180,200
Heating plate temperature
270°C
270°C
Heating plate surface temperature(170-250°C)
<±5°C
<±5°C
Working Voltage
220V,50Hz
220V,50Hz
Heating plate power
1.0KW
1.7KW
Cutter power
0.85KW
0.85KW
Total Power
1.85KW
2.55KW
Our advantage:
1. The raw material of the machine frame is aluminum ZL104, it is light but strong, is one of the best material for machine.
2. The main electrical apparatus elements are best of china, imported from abroads.
3. Removable PTFE coated heater with separate temperature control system,temperature can be controlled to a minimum range.
4. The electric facer adopts reversible double cutting edge blades, which can make the cutting effect more perfect.
Our Services
1. One year warranty, life-long maintenance. 2. In warranty time, if nonartificial reason damaged can take old change new for free. Out of warranty time, we can offer maintenance service (charge for material cost). 3. Engineers available to service machinery overseas but all the costs to the buyer to pay.
Company Information
JINAN BADA PLASTIC PIPE WEDLING EQUIPMENT CO.,LTD is a leader manufacturer specialized in butt welding machine in china.
It has built up an excellent brand image and gotten above 80% domestic market and export to more than 40 countries since entered to China in 2009 .
We own a complete range of international standard butt fusion equipment including field welding machine, workshop fitting machine, pipe cutting saw, all the optional parts and tools required under the ISO9001 quality system as well as CE certification.
Place of Origin: Shandong, China (Mainland)
Brand Name: CNBADA
Model Number: SHBDS 160
:
:
:
:
:
:
:
:
160 pe hdpe pipe butt fusion welding machine ---Further parameters:
