Product Details
- Place of Origin: Shandong, China (Mainland)
- Brand Name: CNBADA
- Model Number: SHBDS315
- Weight: 143.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
Quick Details
Condition: New
Place of Origin: Shandong, China (Mainland)
Brand Name: BADA
Model Number: SHBD315
Input Voltage: 220V
Current: 50Hz
Power: 4.21KW
Dimensions: 110mm~250mm
Usage: Welding plastic pipe
Certification: CE&ISO
After-sales Service Provided: Engineers available to service machinery overseas
Color: red or blue or other
Warranty: one year
Available welding diameter:110mm,125mm,140mm,160mm,180mm,180mm,200mm,225mm,250mm
Total Volume: 0.91m³
Total Weight: 143KG
Material: Aluminium
Weld Method: hydraulic butt fusion welding machine
Apply To: sanitation, water, natural gas and others
Package: standard export wooden cases
Video teaching: YES
Packaging & Delivery
| Packaging Details: | The goods are packaged by three composite material standard export wooden cases after plastic film packaging. |
|---|---|
| Delivery Detail: | Shipped in 2 days after payment |

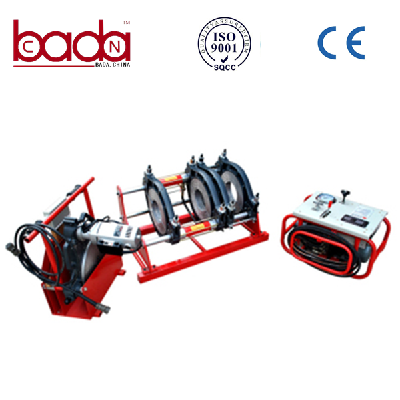

315 pe hdpe pipe butt fusion welding machine ---Application:
PE pipes welding machine;
HDPE pipes welding machine;
PP pipes welding machine;
PB pipes welding machine;
any other plastic pipes available for welding... ...
315 pe hdpe butt fusion welding machine ---Further parameters:
Model | SHBD250 | SHBD315 | SHBD450 |
Welding diameters (mm) | 110,125,140,160, | 160,180,200,225, | 280,315,355, 400,450 |
Heating plate temperature | 270°C | 270°C | 270°C |
Heating plate surface | <±5°C | <±5°C | <±7°C |
Pressure adjustment range | 0-6.3MPa | 0-6.3MPa | 0-6.3MPa |
Cross-sectional area of the cylinder | 1100mm2 | 2000mm2 | 2237mm2 |
Working Voltage | 220V,50Hz | 220V,50Hz | 380V,50Hz |
Heating plate power | 2.1KW | 3.1KW | 5.2KW |
Milling cutter power | 1.36KW | 1.36KW | 1.5KW |
Hydraulic station power | 0.75KW | 0.75KW | 1.5KW |
Total Power | 4.21KW | 5.21KW | 8.2KW |
Our advantages:
1. The raw material of the machine frame is aluminum ZL104, it is light but strong, is one of the best material for machine.
2. The main electrical apparatus elements are best of china, imported from abroads.
3. Removable PTFE coated heater with separate temperature control system,temperatur can be controlled to a minimum range.
4. The electric facer adopts reversible double cutting edge blades, which can make the cutting effect more perfect.
Our Services
1. One year warranty, life-long maintenance.
2. In warranty time, if nonartificial reason damaged can take old change new for free. Out of warranty time, we can offer maintenance service (charge for material cost).
3. Engineers available to service machinery overseas but all the costs to the buyer to pay.
Company Information
JINAN BADA PLASTIC PIPE WEDLING EQUIPMENT CO.,LTD is a leader manufacturer specialized in butt welding machine in china.
It has built up an excellent brand image and gotten above 80% domestic market and export to more than 40 countries since entered to China in 2009 .
We own a complete range of international standard butt fusion equipment including field welding machine, workshop fitting machine, pipe cutting saw, all the optional parts and tools required under the ISO9001 quality system as well as CE certification.
- Place of Origin: Shandong, China (Mainland)
- Brand Name: CNBADA
- Model Number: SHBDS315
- Weight: 143.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
315 pe hdpe butt fusion welding machine ---Further parameters:
Model | SHBD250 | SHBD315 | SHBD450 |
Welding diameters (mm) | 110,125,140,160, | 160,180,200,225, | 280,315,355, 400,450 |
Heating plate temperature | 270°C | 270°C | 270°C |
Heating plate surface | <±5°C | <±5°C | <±7°C |
Pressure adjustment range | 0-6.3MPa | 0-6.3MPa | 0-6.3MPa |
Cross-sectional area of the cylinder | 1100mm2 | 2000mm2 | 2237mm2 |
Working Voltage | 220V,50Hz | 220V,50Hz | 380V,50Hz |
Heating plate power | 2.1KW | 3.1KW | 5.2KW |
Milling cutter power | 1.36KW | 1.36KW | 1.5KW |
Hydraulic station power | 0.75KW | 0.75KW | 1.5KW |
Total Power | 4.21KW | 5.21KW | 8.2KW |
