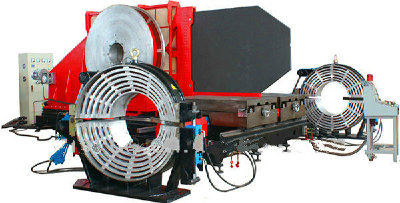

1200 pipe fitting welding machine for sale Pipe Making Machine

1200 pipe fitting welding machine for sale Pipe Making Machine

  • Min.Order Quantity: 100 Pieces
  • Supply Ability: 5000 Pieces per Month
  • Port: QINGDAO
  • Payment Terms: L/C,T/T,Western Union
Get Latest Price:
  • *Quantity: Piece/Pieces
Verified Supplier Jinan Bada Plastic Pipe Welding Equipment Co., Ltd.
| Factory
Experience:2009-11-09
Visit Factory
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  Shandong, China (Mainland)
  • Brand Name:  CNBADA
  • Model Number:  SHBG1200
  • Weight: 2850.000 kg
  • :
  • :
  • :
  • :
  • :
  • :
  • :

Quick Details

  • Condition: New

  • Place of Origin: Shandong, China (Mainland)

  • Brand Name: BADA

  • Model Number: SHBG 1200

  • Input Voltage: 380V

  • Current: 50Hz

  • Power: 73.5KW

  • Dimensions: 710-1200mm

  • Usage: Welding plastic pipe fittings

  • Certification: CE

  • After-sales Service Provided: Engineers available to service machinery overseas

  • Warranty: one year

  • Color: red or blue

Packaging & Delivery

Packaging Details:standard export plywood boxes
Delivery Detail:7 days

Specifications

1200 fittings welder
1. pipe fittings welder
2. apply to pe pipe
3. high quality but good price
4. working environmently

Application and Features:


1. Applicable in the workshop production of PE,PP,PVDF elbow, equal tee equal cross.lengthen injection short pipe fittings, fittings production assembly and so on.
2.Integrated structural design,welded pipe fittings of different can simply replace the corresponding clamps.
3.Heating palte with seperate temperature control system, Teflon coating.
4.Electric cutter, safety limit switch to prevent accidental start-cutter.
5.Low starting pressure, high reliability seal structure.
6.Seperate two-channel timer can record heat and cooling two time periods, timer expires alarm,convenient for users.
7.The use of digital pressure gauge, pressure control is more precise.
8.Heating plate,cutter,pallet using linear guide rail.
9.Product complies with 98/37/EC and 73/23/EEC standards.
10.Optional components: short flange welding clamp,short pipe welding special clamp.

 Further Parameters:



Model

SHBG1000

SHBG1200

SHBG1600

 Welded Tube Type

0-90º Elbow,tee,cross

Welding range(mm)

630-1000

710-1200

900-1600

Operating voltage(V/Hz)

380V,50Hz

380V,50Hz

380V,50Hz

Heating plate Max.
temperature(°C)

270°C

270°C

270°C

Max. Pressure

16Mpa

16Mpa

16Mpa

Cross-sectional area
of the cylinder(mm2)

3846

3846

5534

Total power(KW)

59.5KW

73.5KW

92KW




Our advantages:



1. The raw material of the machine frame is aluminum ZL104, it is light but strong, is one of  the best material for machine.

2. The main electrical apparatus elements are best of china, imported from abroads.

3. Removable PTFE coated heater with separate temperature control system,temperatur can be controlled to a minimum range.

4. The electric facer adopts reversible double cutting edge blades, which can make the cutting effect more perfect.



Our Services





 1. One year warranty, life-long maintenance.

 2. In warranty time, if nonartificial reason damaged can take old change new for free. Out of         warranty time, we can offer maintenance service (charge for material cost).

 3. Engineers available to service machinery overseas but all the costs to the buyer to pay.

Company Information



JINAN BADA PLASTIC PIPE WEDLING EQUIPMENT CO.,LTD is a leader manufacturer specialized in butt welding machine in china.

It has built up an excellent brand image and gotten above 80% domestic market and export to more than 40 countries since entered to China in 2009 .

We own a complete range of international standard butt fusion equipment including field welding machine, workshop fitting machine, pipe cutting saw, all the optional parts and tools required under the ISO9001 quality system as well as CE certification.


  • Place of Origin:  Shandong, China (Mainland)
  • Brand Name:  CNBADA
  • Model Number:  SHBG1200
  • Weight: 2850.000 kg
  • :
  • :
  • :
  • :
  • :
  • :
  • :

Further Parameters:



Model

SHBG1000

SHBG1200

SHBG1600

 Welded Tube Type

0-90º Elbow,tee,cross

Welding range(mm)

630-1000

710-1200

900-1600

Operating voltage(V/Hz)

380V,50Hz

380V,50Hz

380V,50Hz

Heating plate Max.
temperature(°C)

270°C

270°C

270°C

Max. Pressure

16Mpa

16Mpa

16Mpa

Cross-sectional area
of the cylinder(mm2)

3846

3846

5534

Total power(KW)

59.5KW

73.5KW

92KW
